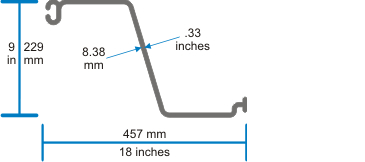

TW70 2D Drawing






TW70
Standard color
Light gray
Custom colors
Clay, Slate, Others
UV Protection
TW70 is made from highly weatherable, UV-stabilized rigid PVC
60 Year Warranty
TW70 is covered by a transferable Limited 60 year Warranty that protects against manufacturing defects
    Standard Metric
Constituent Material
PVC, Exterior Grade Rigid Only
PVC, Exterior Grade Rigid Only
Section Width (W)
18 inches
457 mm
Section Depth (D)
9 inches
229 mm
Section Thickness (T)
.330 inches
8.38 mm
Weight
5.95 lbs/lineal foot
8.91 kg/lineal meter
Moment of Inertia
87.93 in4/ft
12,008 cm4/m
Section Modulus
19.54 in3/ft
1,050 cm3/m
Ultimate Moment
10,584 ft-lb/ft
4,860 kg-m/m
Allowable Moment
5,292 ft-lbs/ft
2,430 kg-m/m
Tensile Strength ASTM-D638
6,500 lbs/in2
44.8 Mpa
Flexural Strength ASTM-D790
10,200 Psi
70.3 Mpa
Modulus of Elasticity ASTM-D790
380,000 Psi
2,620 Mpa
Notched Izod Impact ASTM-D256
13.75 lbs/in
2.46 kg/cm
Heat Deflection Temp. ASTM-D648
158 degrees F
70 degrees C
